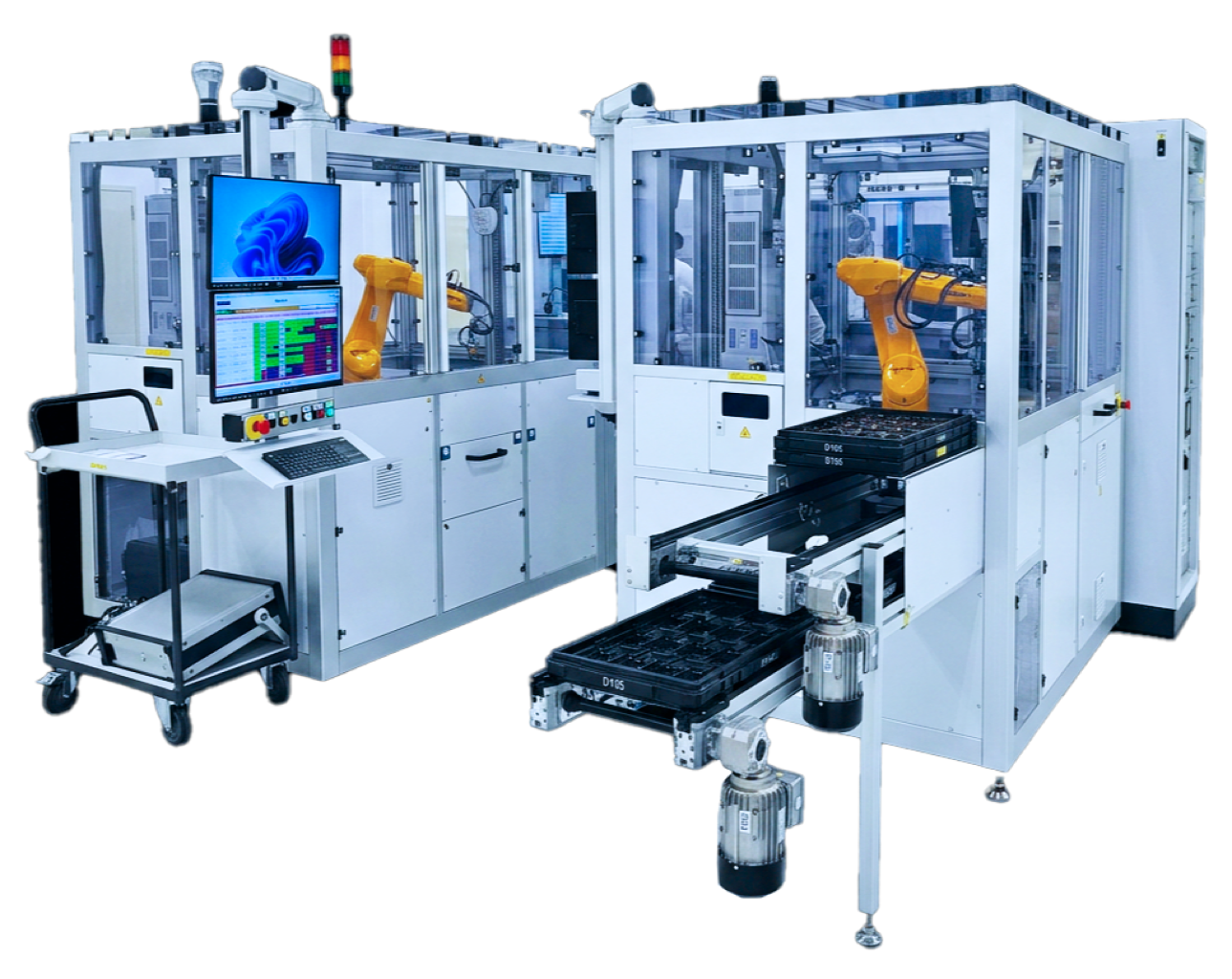

Fully Automated Test Line

Automatic measuring machines and test systems are used to check quality during the production of power semiconductors.

Reach out Watch the Process
Fully Automated Test Line
175 °C
Hot testing
8
Integrated test steps
100%
Unit-level traceability
EOL
Complete line automation

Our Solutions

Eight modular test solutions — combined into one seamless line, tailored to your power module specifications.

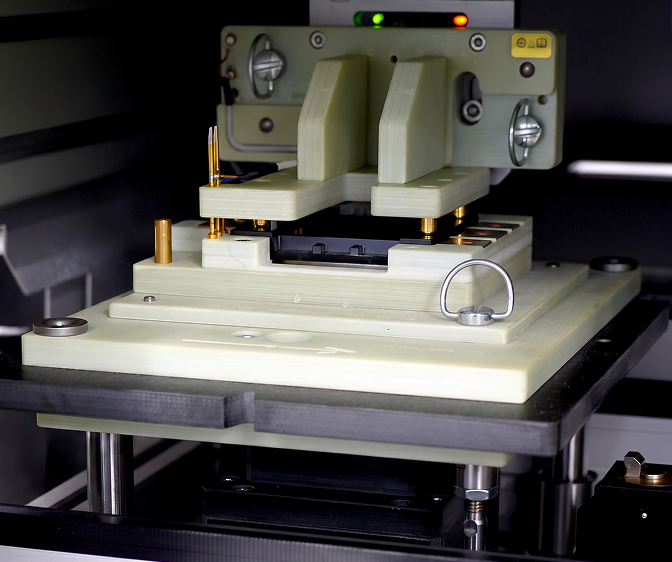

Isolation Test

Isolation Test

High-voltage insulation checks to guarantee complete electrical safety of every power module.

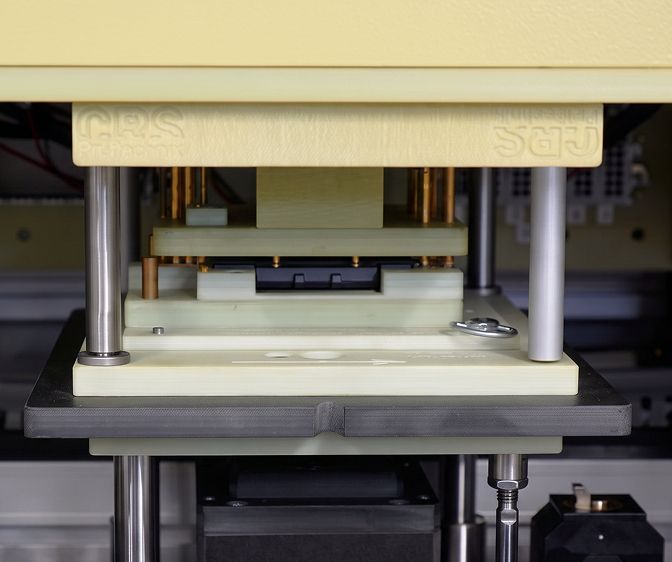

Static Test

Static Test

Precise electrical parameter measurement under static and cold operating conditions.

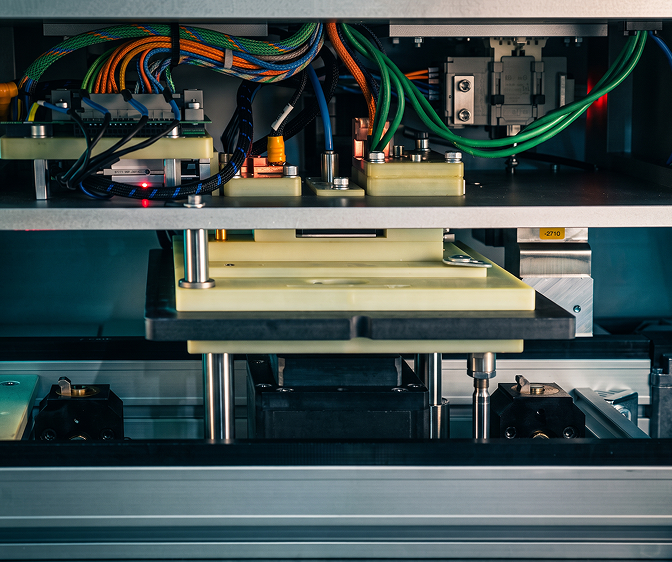

Dynamic Test

Dynamic Test

Switching behavior verification — including hot testing at high-stress points up to 175 degrees C.

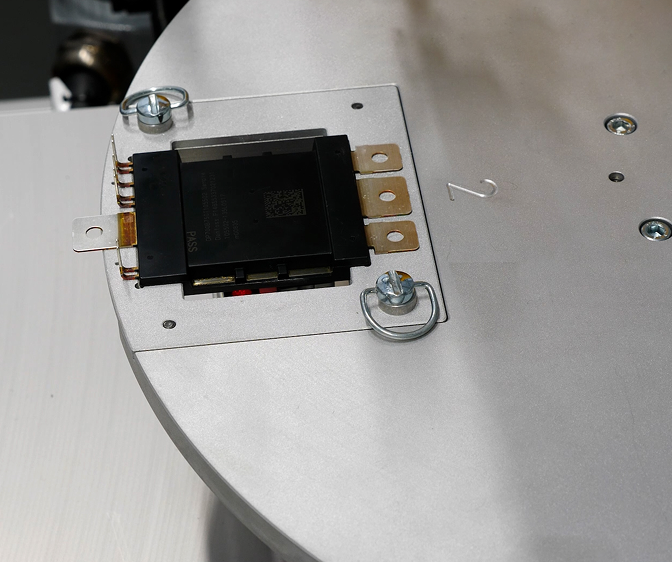

Optical and Tactile

Optical and Tactile

Automated high-definition visual inspection and tactile dimension verification.

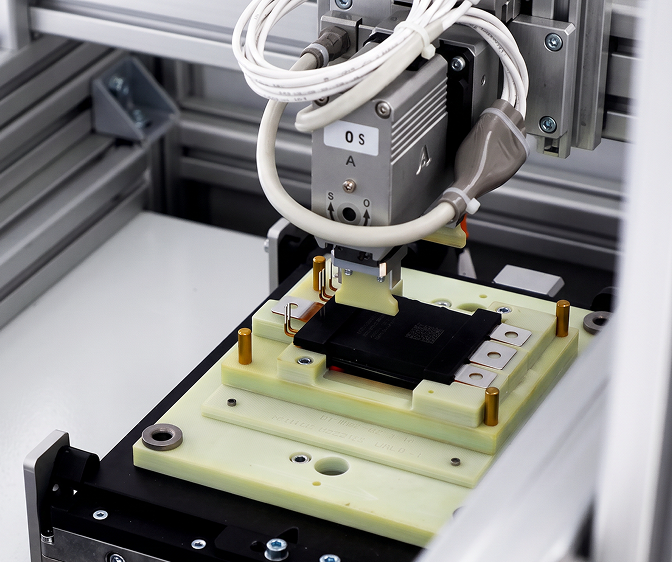

Leakage Test

Leakage Test

Reliable seal and leak-tightness verification of housing systems and high-pressure coolers.

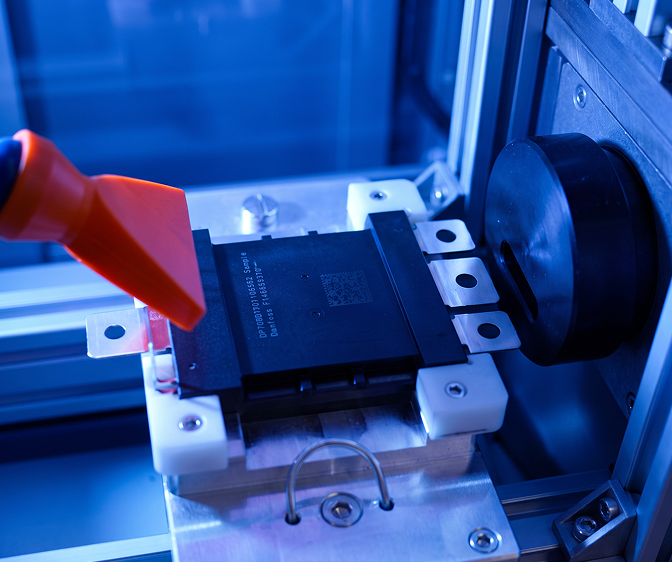

Laser Marking

Laser Marking

Permanent unit identification with unique laser-etched data-matrix codes.

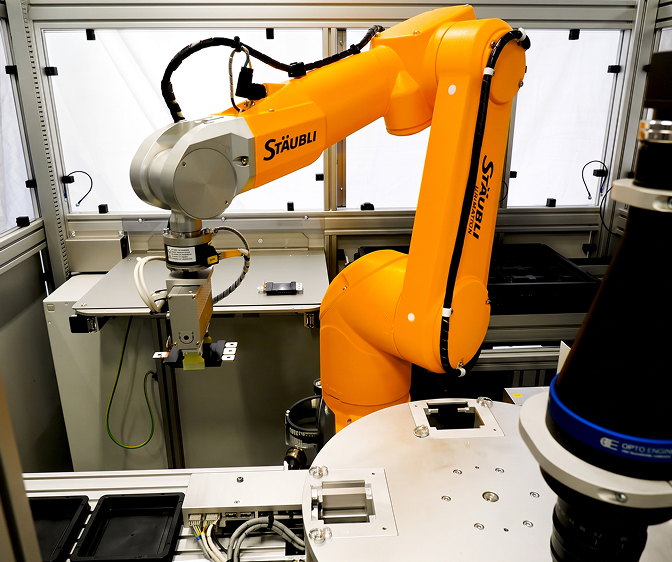

Robot Handling

Robot Handling

Fully automated module handling and pick-and-place tracking between line stations.

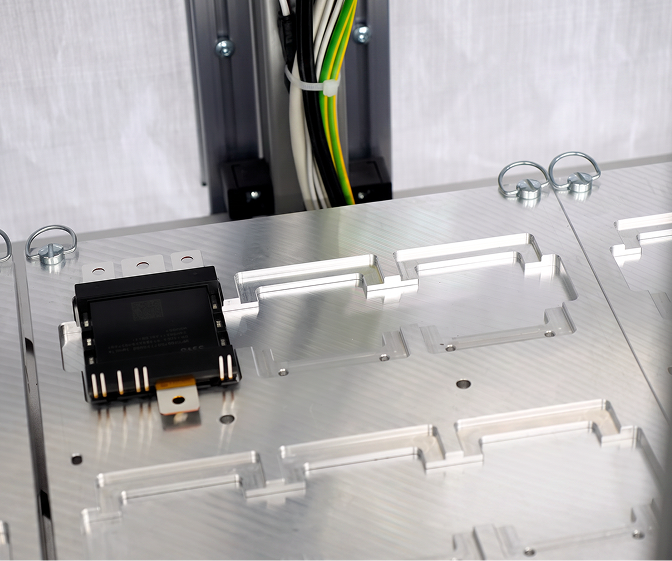

Heating & Cooling on the line

Heating & Cooling on the line

Special-purpose fixtures and adaptive stations engineered directly for your product geometry.

The Testing Process

Testers Used in this Automated Testline

Eight modular test solutions — combined into one seamless line, tailored to your power module specifications.

Line Control / Traceability

  • Integrated line computer controlling and monitoring every process and test step in real-time
  • Automated secure time stamps recorded for each individual test and laser process
  • Direct secure database handshake with client ERP / MES infrastructure
  • Centralized recipe and test program configuration management
  • Live OEE performance analytics, yield reports, and top failure rankings

HMI — Test Line Control

HIPOT Test 00009 PASS
Static Test 00009 PASS
Dynamic Test 00009 PASS
Leakage Test 00009 PASS

Die (KGD)

Si / SiC / GaN

Diode

Z Diodes / High Voltage Diodes / ULLD / ARD ...

FET

Si / SiC / GaN

IGBT

Silicon (Si)

Bridges / Modules

Half Bridge, Full Bridge and Rectifiers

Talk to our experts for professional guidance.

Send Us a Message Now!

Other Solutions

Eight modular test solutions — combined into one seamless line, tailored to your power module specifications.

Lab

Integrated line control, automated traceability, and real-time analytics - built for modern manufacturing workflows.
A centralized control plane that keeps every test step, laser process, and production record in sync - with a clean, modern interface that reduces cognitive load.

  • Integrated line computer controlling and monitoring every process and test step in real-time
  • Automated secure time stamps recorded for each individual test and laser process
  • Direct secure database handshake with client ERP / MES infrastructure
  • Centralized recipe and test program configuration management
  • Live OEE performance analytics, yield reports, and top failure rankings

Drawer Station

Secure manual testing station enabling sequential multiplexing and evaluation for any power semiconductor package.

A highly flexible, interchangeable handling unit that safely contacts, tests, and validates diverse device types with integrated process controls.

  • Universal compatibility for diodes, IGBTs, FET modules, and Si/SiC devices via easily exchangeable test-adapters
  • Automated 4-wire contacting (pogo pin or gripper) with secure drawer locking during active testing
  • Smart visual status indicators with automatic release for passed components and mandatory manual fail acknowledgment
  • Integrated hardware for fixed or handheld Data Matrix scanning to ensure complete database traceability
  • Built-in integration for side-mounted label printers, label dispensers, or direct inkjet marking

Diode Handler

Automated feeding, straightening, measuring, and sorting system optimized for high-volume, continuous diode processing.

A comprehensive mechanical handling unit that securely processes, contacts, and categorizes diodes into four distinct classes with continuous routing checks.

  • High-capacity 37-liter vibration bowl feeder processing up to 90 parts per minute
  • Integrated head wire straightener and separator for precise gap control and cutting
  • Spring-loaded, four-contact (force and sense) mechanical handling for reliable measuring
  • Automated mechanical sorting into four approved categories or specific fault rejections
  • Safety-enclosed aluminum framework with light barriers and emergency stop integration
